Thông tin chi tiết sản phẩm:
|
| Kích cỡ: | K - 26a Không (15A) | Chứng nhận: | ce |
|---|---|---|---|
| Đặc trưng: | Gắn dễ dàng | Vật liệu: | Nhựa |
| Người mẫu: | SMF10 | Bảo hành: | 1 năm |
| Làm nổi bật: | G NPT Chuyển áp không khí,Dễ dàng lắp đặt công tắc áp suất không khí,Chuyển đổi áp suất không khí SMF |
||
Multiple Pipe Fittings:Comes with NPT 1/4 Male or Female and G 1/4 " options for flexible installation.

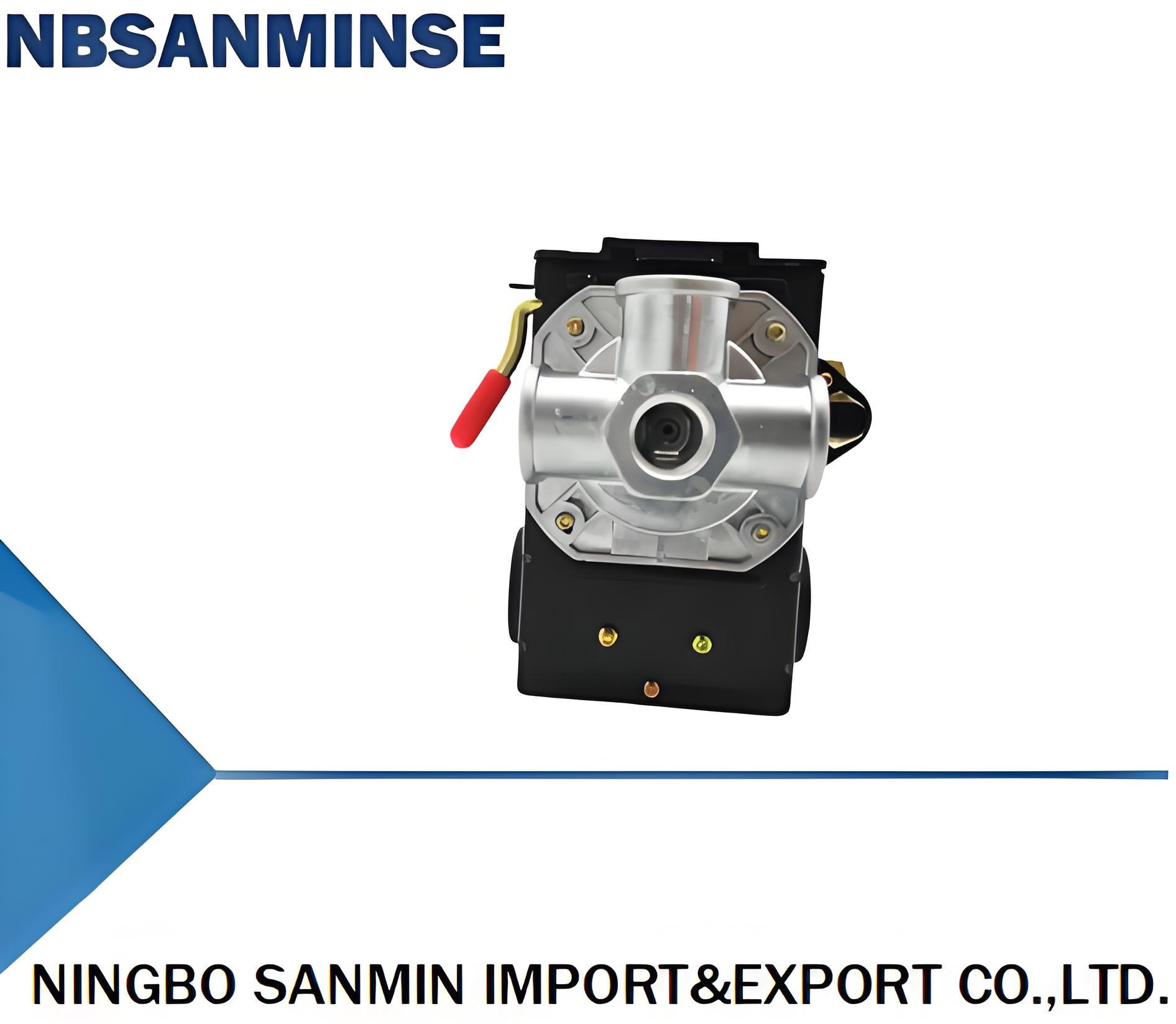

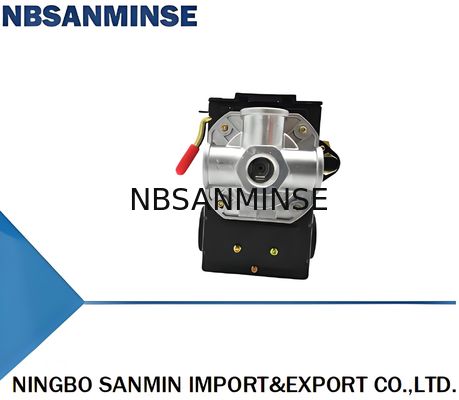

Easy Mounting:Features a 4-port manifold design for effortless mounting of valves and gauges.
Dual Electrical Rating:Supports 120VAC and 240VAC, ensuring compatibility with a wide range of electrical systems.
Industrial Approvals:Meets UL, CSA, TUV CE, CCC standards for industrial safety and reliability.
Versatile Pressure Range:Available with preset ranges from 25-200 PSI to suit various air compressor needs.
Ex : ON :1Bar OFF:2Bar =NC
ON :2Bar OFF:1Bar =NO
ON :-0.9Bar OFF:-0.65Bar =NO
ON :-0.65Bar OFF:-0.9Bar =NC
|
MODEL
|
Min ON (Cut-In) PSI
|
Max Off
(Cut-Out) PSI
|
Differential
PSI
|
Factory Setting PSI
|
Electrical Rating
|
Pipe Fittings
|
Contact Arrangement
|
|
|
120VAC
|
240VAC
|
|||||||
|
SMF10-1H1
|
25
|
100
|
20-30
|
50-80
|
20A
|
12A
|
NPT 1/4 Male or Female NPT
|
NC
|
|
SMF10-1H2
|
35
|
150
|
30-40
|
85-115
|
20A
|
12A
|
1/4" Male or Female NPT
|
NC
|
|
SMF10-1H3
|
50
|
175
|
35-55
|
110-150
|
20A
|
12A
|
1/4" Male or Female NPT
|
NC
|
|
SMF10-4H1
|
25
|
100
|
20-30
|
50-80
|
20A
|
12A
|
1/4" Female NPT (4 Port)
|
NC
|
|
SMF10-4H2
|
35
|
150
|
30-40
|
85-115
|
20A
|
12A
|
1/4" Female NPT (4 Port)
|
NC
|
|
SMF10-4H3
|
50
|
175
|
35-55
|
110-150
|
20A
|
12A
|
1/4" Female NPT (4 Port)
|
NC
|
|
MODEL
|
Min ON (Cut-In) PSI
|
Max Off
(Cut-Out) PSI
|
Differential PSI
|
Factory Setting PSI
|
Electrical Rating
|
Pipe Fittings
|
Contact Arrangement
|
|
|
120VAC
|
240VAC
|
|||||||
|
SMF10A-1H1
|
25
|
100
|
20-30
|
50-80
|
26A
|
26A
|
NPT 1/4 Male or Female NPT
|
NC
|
|
SMF10A-1H2
|
35
|
150
|
30-40
|
85-115
|
26A
|
26A
|
1/4" Male or Female NPT
|
NC
|
|
SMF10A-1H3
|
50
|
175
|
35-55
|
110-150
|
26A
|
26A
|
1/4" Male or Female NPT
|
NC
|
|
SMF10A-1H4
|
70
|
200
|
40-55
|
130-175
|
26A
|
26A
|
1/4" Male or Female NPT
|
NC
|
|
SMF10A-4H1
|
25
|
100
|
20-30
|
50-80
|
26A
|
26A
|
1/4" Female NPT (4 Port)
|
NC
|
|
SMF10A-4H2
|
35
|
150
|
30-40
|
85-115
|
26A
|
26A
|
1/4" Female NPT (4 Port)
|
NC
|
|
SMF10A-4H3
|
50
|
175
|
35-55
|
110-150
|
26A
|
26A
|
1/4" Female NPT (4 Port)
|
NC
|
|
SMF10A-4H4
|
70
|
200
|
40-55
|
130-175
|
26A
|
26A
|
1/4" Female NPT (4 Port)
|
NC
|
