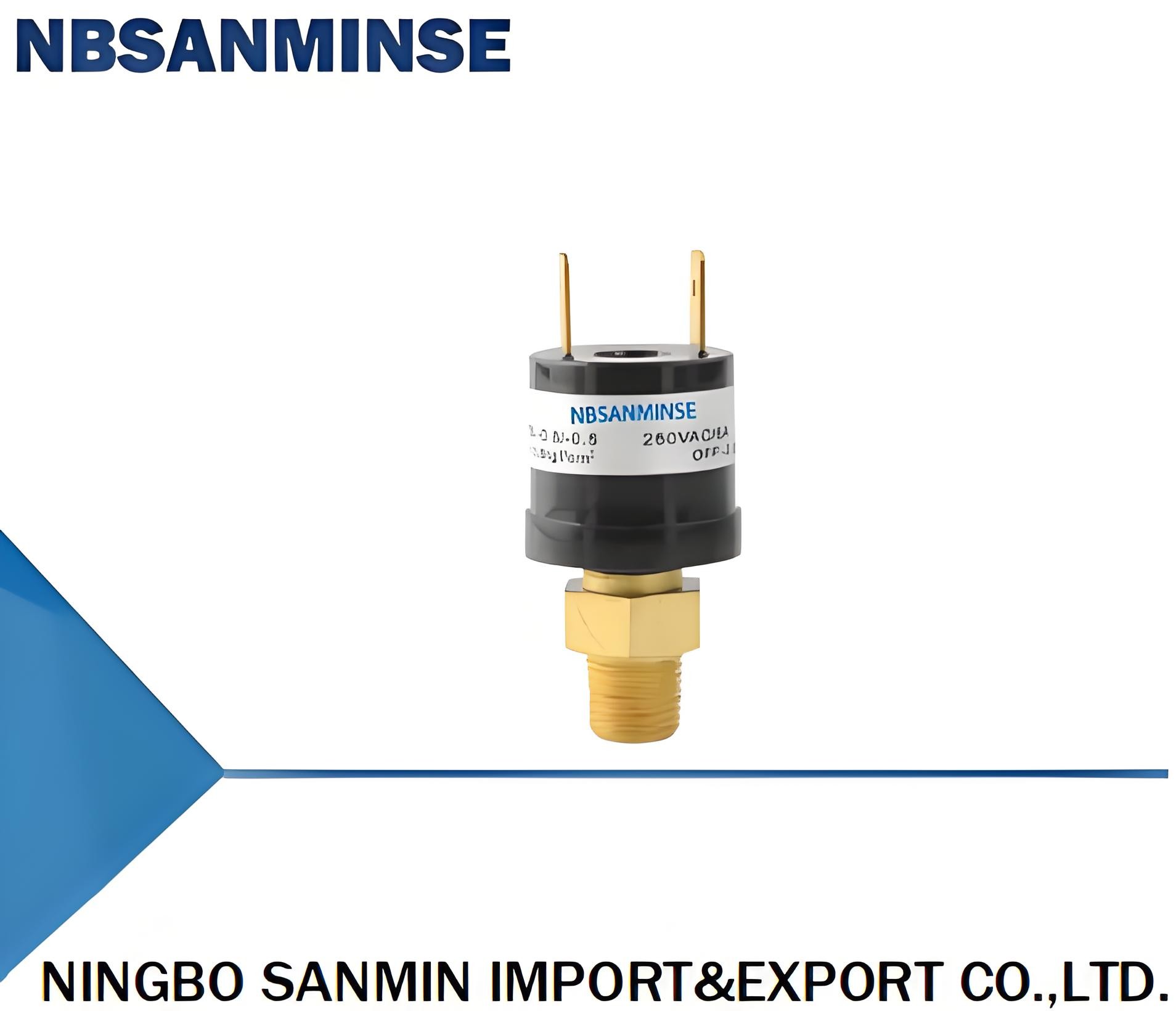

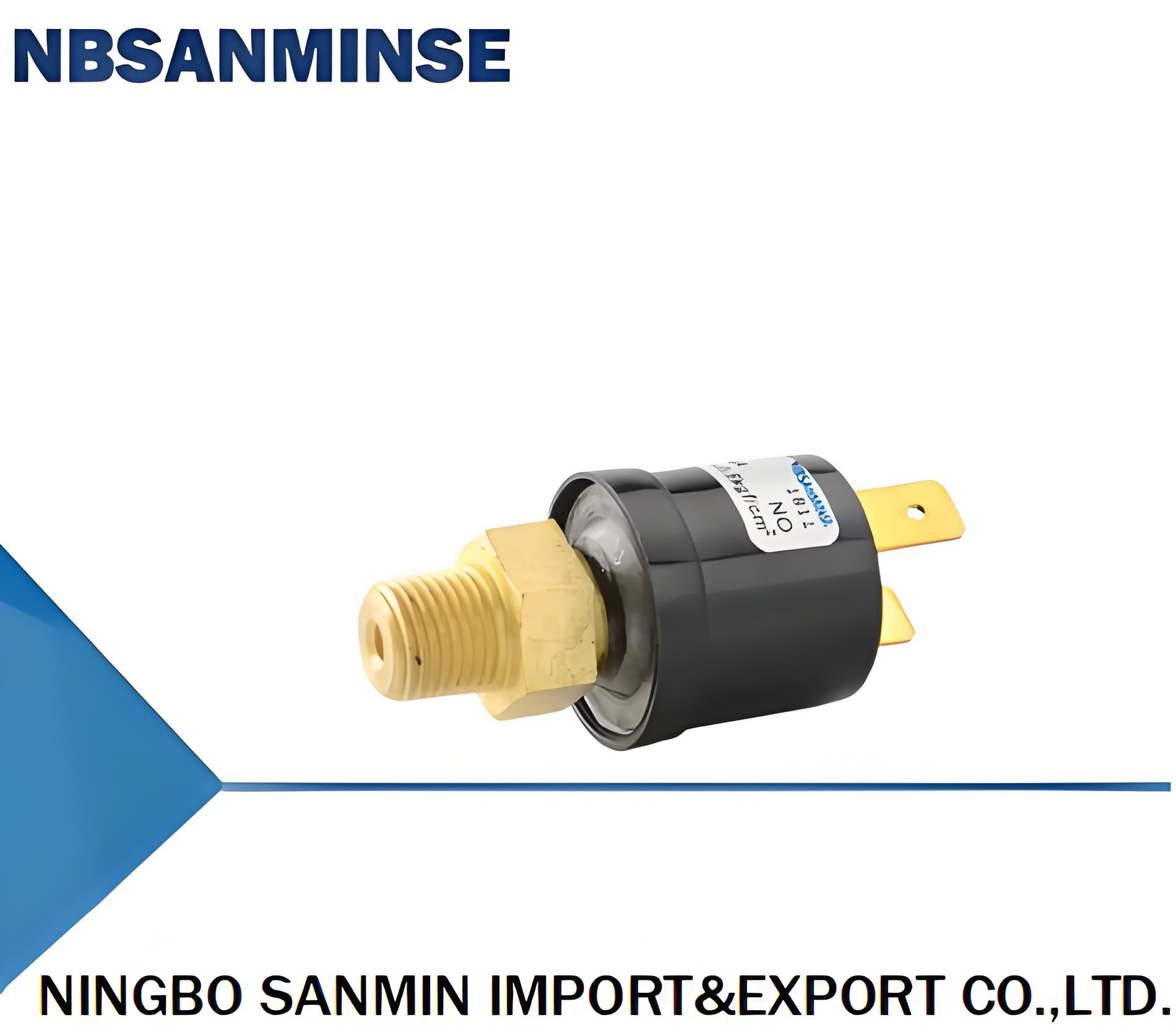

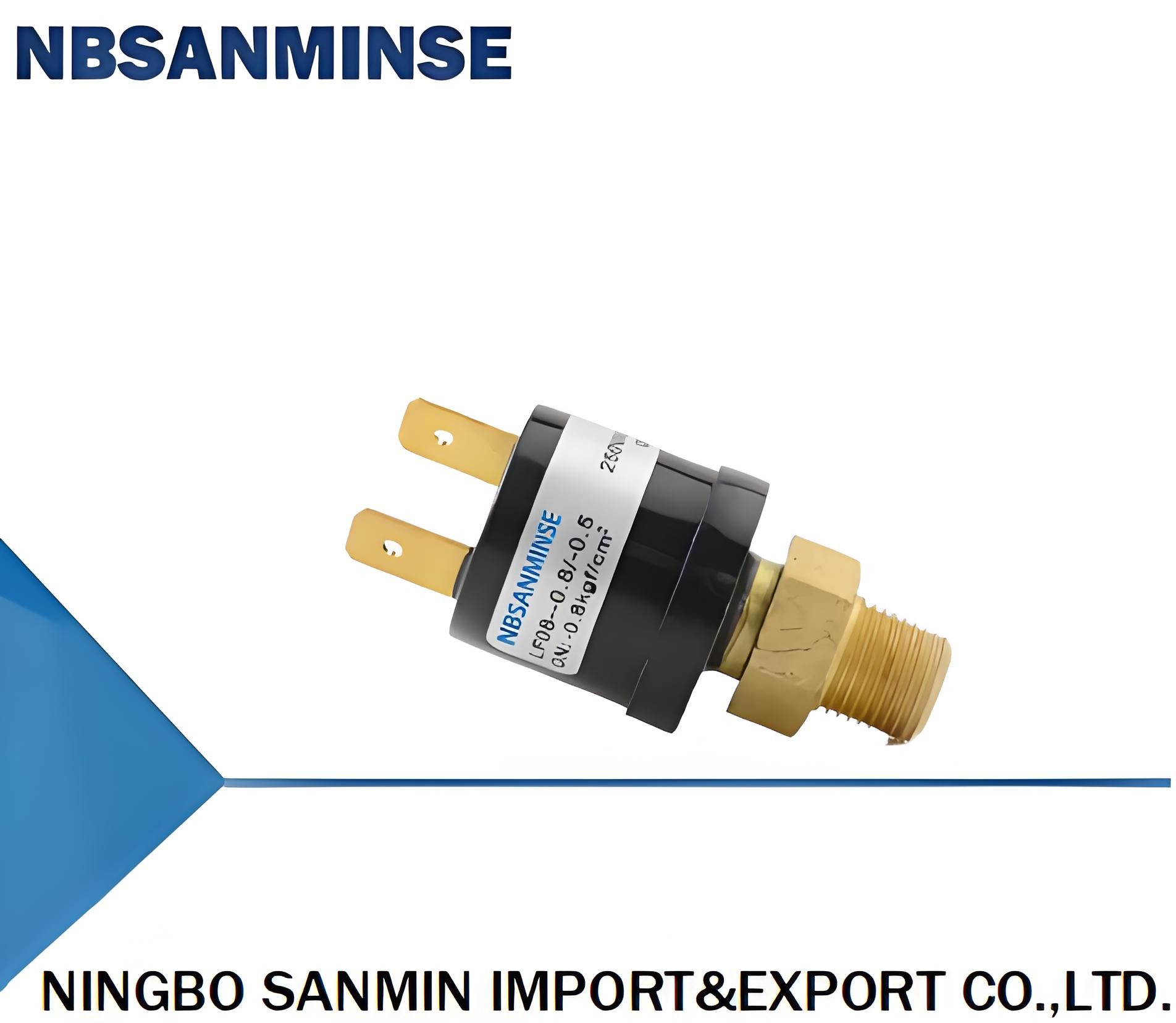

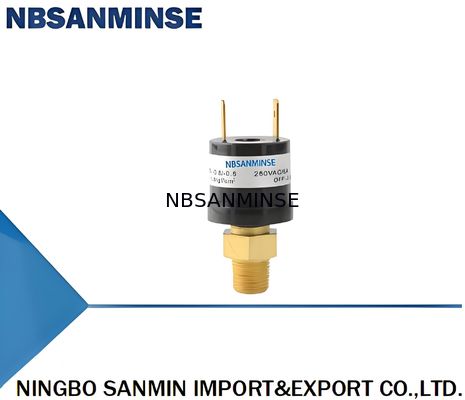

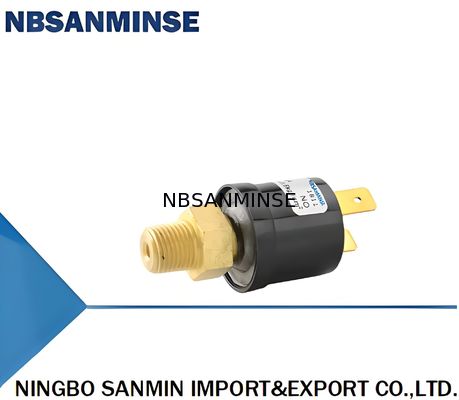

Thông tin chi tiết sản phẩm:
|
| Người mẫu: | SMF08V | Chủ đề: | 6,35*0,8 NPT1/8 NPT1/4 |
|---|---|---|---|
| Vật liệu: | Thau | Chứng nhận: | CE |
| Đặc trưng: | Thiết kế công tắc đặt lại tự động | Nhiệt độ môi trường: | -20 ~ 65 c |
| Làm nổi bật: | Chuyển đổi áp suất môi trường chân không,Chuyển đổi áp suất tự động,Chuyển đổi áp suất môi trường chân không |
||
•Switch Type: Pressure Switch,Precise pressure control with a pressure switch type, ideal for vacuum tank and refrigeration applications.
•Electrical Connections: 6.35 X 0.8 NPT,Standard 6.35 X 0.8 NPT electrical connections for easy installation and compatibility with various systems.
•Environment Temperature: -20 ~ 65 C,Operates reliably in a wide temperature range from -20 to 65°C, suitable for various climates.
•410a Low Presser Switch|How Do Vacuum Pump Work|Material: Brass,Crafted from durable brass, this switch withstands the rigors of vacuum environments.
•Features: Designed Automatic Reset Switch,Automatic reset design ensures consistent performance and easy recovery from pressure fluctuations.
Ex : ON :1Bar OFF:2Bar =NC
ON :2Bar OFF:1Bar =NO
ON :-0.9Bar OFF:-0.65Bar =NO
ON :-0.65Bar OFF:-0.9Bar =NC
Normally is brass material,Normal close,if special request ,please memo for us during payment
|
Seires No.
|
SMF08-V
|
|
Medium
|
Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid
|
|
Pressure Set Point
|
-0.85 Bar to 1.5 Bar
|
|
Proof Pressure
|
10 Bar
|
|
Burst Pressure
|
100 Bar
|
|
Operating Temperature Range
|
-30° C to ~ 80° C
|
|
Switch Type
|
SPST- NC, SPST-NO
|
|
Electric Rating
|
120/240VAC, 3A
5~28VDC, 6A
|
|
Dielectric Strength
|
750 Vrms across open contacts
1550 Vrms terminals to fitting |
|
Terminals
|
1/4” blade, wire lead
|
|
Life at Related Load
|
100,000 cycles
|
|
Connection
|
1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20 UNF, etc.
|
|
Options
|
various connector thread sizes; wire leads (potted & sealed); protective cover.
|
